Description:
1, Suspension structure, hanging in the central of the venue,
equipped with lifting structure.
2, Assembling structure, the entire funnel structure can be
assembled and disassemble easily, it is time saving, labor saving
and transportation saving.
3, Seamless splicing, no black or black line in the edges and
corners area, the viewing effect is better.
4, Dynamic,compared with the original light box, the four
trapezoidal area as gold advertising zone
changed to the digital billboard, the broadcast content will be
random and the operating income will be more rich.
5, The "3 highs" design, high refresh (3000 HZ), high contrast(
2000:1) and high gray level (65536 )
6, Compatible with a variety of media equipment, and support
PAL/NTSC format, CVBS, S - VIDEO, VGA, DVI (HD/SD/PC), HDMI
(HDCP/SD/HD/PC), YPbPr, SDI (SD/HD / 3 G) signal.
7, High reliability, considering the demands of high reliability
system for live television, we designed the double computers
backups (optional), double sending card backups (optional), double
receiving card backups (optional), double Ethernet port backups
(optional) and the detection function of network error rate.
The main screen: (Square Area) Live show, close-up shot, playback,
competition information broadcast, advertisement and other
switching varieties.
The secondary screen: (Trapezoidal Area) Mainly for advertisement,
can also combined into a whole screen with the main square screen.

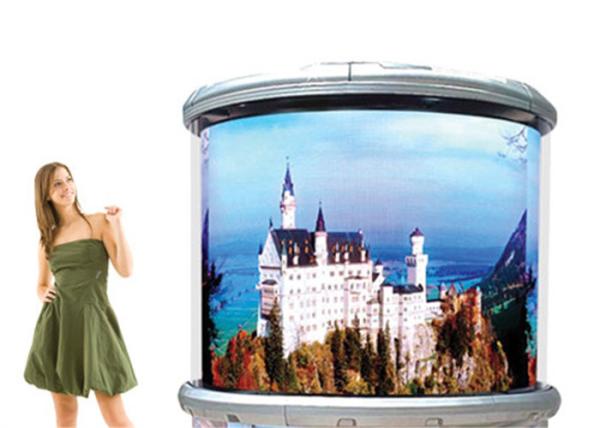

Cylindrical screen: Generally used for advertising, text messages,
etc., can use be loop playback and partition play.
Specifications:
| Pixel Pitch | 6mm | Pixel Density | 27777dot/m2 |
| Pixel Configuration | SMD3535 | Module Size | 192mm*192mm |
| Brightness | ≥6000CD/m2 | Cabinet Size | 960mm*960mm |
| Refresh Rate | ≥1920Hz | Weight | 38kg/m2 |
| Control Mode | Synchronized control | Drive Method | 1/8 scan |
| Viewing Angle | H:140° V:120° | Working Voltage | AC 220V / AC 110V ±10%,50Hz |
| Max. power consumption | 750W/m2 | Average power consumption | 300W/m2 |
Guidance service: We can guide on line if customers have questions about the
installation and usage. For large project, we provide your engineer
a week free training, or if customer could bear the relevant cost,
we can dispatch our engineer for on-site guidance.
Warranty period: 2 years after shipment.
Maintenance service:
Maintenance principles: response in time, solve problems as soon as
possible and ensure the use.
Maintenance terms: In the Maintenance period, free of all
maintenance charges. Under normal use and storage, we will be
responsible for the equipment. If there is any failure in product
quality, our company will maintain and change the components for
free. After Maintenance period, only charge the material costs fees
free of manual work fees.
