    Pixel Pitch 6mm Advertising Large Outdoor LED Display Screens For Plaza / Mansion

    Ask Lasest Price
    Brand Name : EFF
    Model Number : eff/as
    Certification : CE/FCC
    Price : according to different style
    Payment Terms : T/T, Western Union
    Supply Ability : 1000M2 PER MONTH
    Delivery Time : ACCPRDING TO QUANTITY
    • Product Details
    • Company Profile

    Pixel Pitch 6mm Advertising Large Outdoor LED Display Screens For Plaza / Mansion

    Pixel Pitch 6mm Advertising Large Outdoor LED Display Screens For Plaza / Mansion


    Specifications:



    We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation . The Indoor P6 full color led display is very high definition and brightness,its’ very attractive and hot sell. The feature as follows:please check it.

    1, the brightness: >2000cd/m²

    2, Led pixel composing:3 in 1

    3, voltage:DC5V

    4, View angle:80

    5, Led parameter: R:625-630nm G:515-530nm B:465-475nm

    6, 2years warranty, more than 10 years life use.


    The detailed parameter as follows.


    1, Item Nametechnology parameter
    2, pixel tube:

    pixel pitch:6mm; primary colors: pure red+ pure green +pure blue;

    color composing:1R1G1B;

    density:27777dots/sq m; SMD3528

    3 , unit box

    module size:192mm×192mm; Module resolution:32X32

    cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

    4, whole screen:

    viewing distance:5-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024

    5, operating voltage

    AC220V±10% or 110V±10% ,average consumption:500 W/sq m

    max consumption:≤650 W/ sq m

    6, main parameter
    1. driving mode:1/4 scan

    2)refreshing rate:≥400Hz/s

    3)frame frequency:≥60Hz/s

    4)gray scale/color:≥16.7Mcolors(Synchronized)

    5)manage gray:≥72bit

    6)brightness:≥2000cd/sq m

    7)color temperature condition:3500K~9500K,be adjustable

    8)adjusting style of brightness: hand movement/auto

    9)video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

    10)average : trouble-free time:≥5000hours

    11)evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

    12)switch power loading:5V/40A

    13)display mode of computer:1024×768




















    Features:

    1. seamless assembling

    2. definition visual effect

    3. Fan-free design, energy saving, more stable,

    4. 140〫 wide view angle,

    5. Approved by RoHS certification, Lead-free, enviromental design

    6. Both above and below use stainless steel hasp

    7. Ergonomic handle design, convenient handling

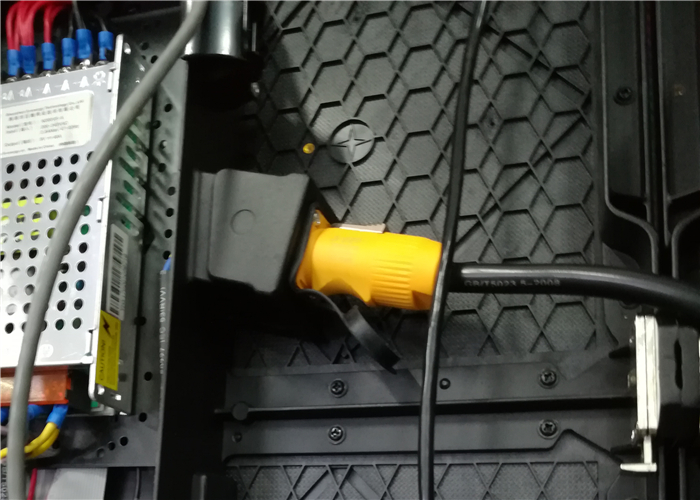

    8. International standards air plug on Power connectors, easy, fast and safe.

    9. Receiving card to card with LAN cable, simple, less failure rate

    10. Diversification assembling

    Competitive Advantages:

    1. 24/7 Online support service.

    2. Free onsite maintenance / Year.

    3. Solution design.

    4. Free online training any time.

    5. High quality raw material used like neutrik flight connector, MBI IC etc.


    Applications:
    Live shows, rental events, TV studios, exhibitions,stage background, department stores, banks, etc.

    Service & Support:

    Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

    Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

    Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

    Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
